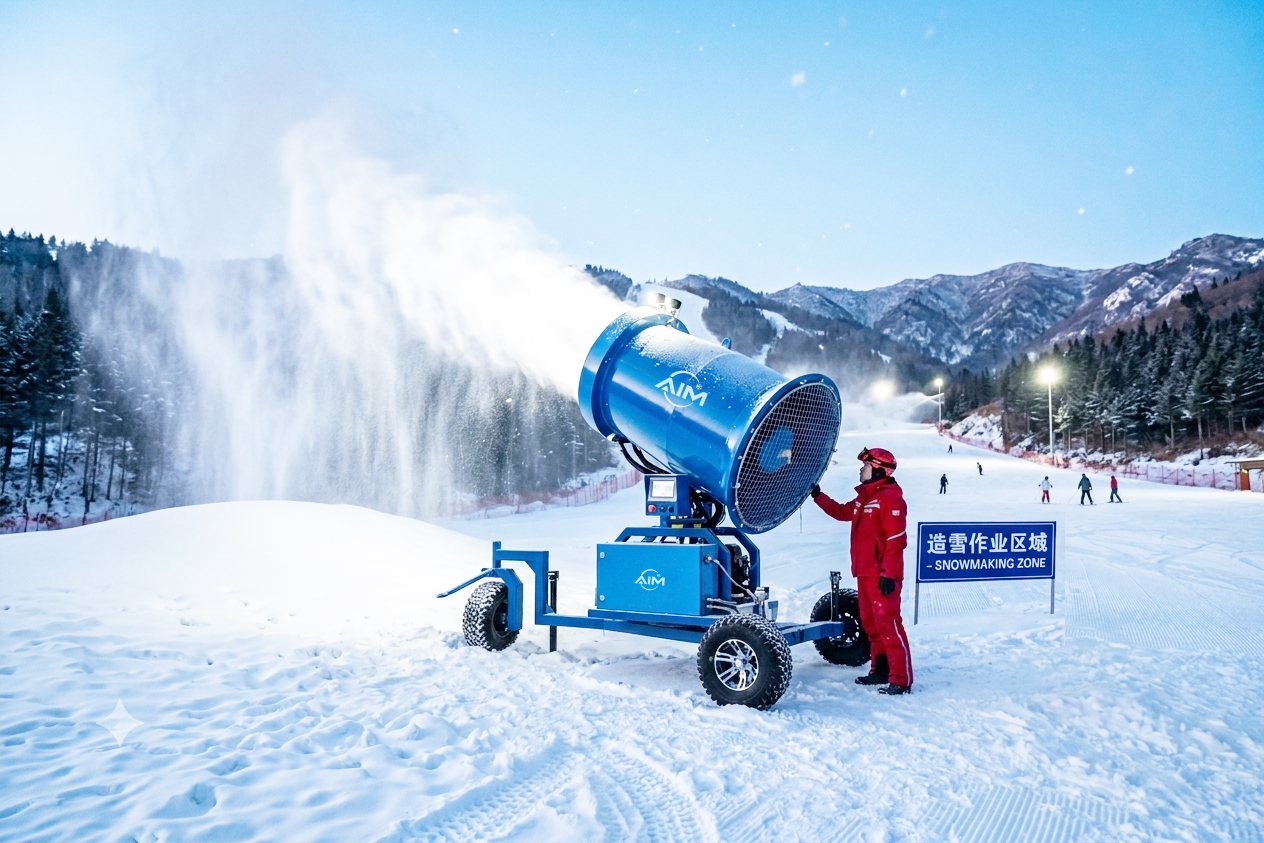

AIM Refrigeration mobile snowmakers create controlled snow for indoor snow parks, ski resorts, snow attractions, event venues and seasonal projects. The Focusun range combines a mobile chassis, fan, nucleator and snowmaking nozzles in a practical system that can be transported and positioned where snow is needed.
Focusun mobile snowmaker range
These cannon type snow machines are designed for snowmaking at 0°C and below. Choose the model according to the required snowmaking capacity, coverage distance, power supply, water availability and site access. FIS-10 and FIS-20 are compact units for smaller projects, while FIS-30 and FIS-50 provide wider coverage and higher output for larger snow areas.
The built-in control system, high-performance nozzle arrangement and robust fan support stable snow quality. Before quotation, AIM will confirm the snow area, operating hours, ambient temperature, water source, drainage, voltage and transport route.
Snowmaker models and technical parameters
Compare the four Focusun mobile snowmaker models below. The desktop table is optimized for side-by-side comparison, while the mobile version presents every model as a readable specification card.
Compact mobile unit for small indoor snow scenes and easy transport.
Three-phase version of the compact unit for stable operation at 380V.
Balanced medium-capacity model with a wider coverage range.
High-capacity mobile snowmaker for wide coverage and large venues.
| Specification | Unit | FIS-10 | FIS-20 | FIS-30 | FIS-50 |
|---|---|---|---|---|---|
| Total installed power | kW | 5.8 | 5.8 | 13 | 25 |
| Applicable voltage | / | 220V | 380V | 380V | 380V |
| Weight | kg | 225 | 225 | 420 | 765 |
| Snowmaking range | m | 15-35 | 15-35 | 20-60 | 30-120 |
| Nucleator nozzles | / | 4 | 4 | 12 | 20 |
| Snowmaking nozzles | / | 12 | 12 | 36 | 60 |
| Cylinder elevation | degrees | 0-45 | 0-45 | 0-45 | 0-45 |
| Rotation angle | degrees | 350 | 350 | 360 | 360 |
| Ambient temperature | / | 0°C to -40°C | 0°C to -40°C | 0°C to -40°C | 0°C to -40°C |
| Water requirement | m³ | 0.7-3.5 | 0.7-3.5 | 7-30 | 10-45 |
| Maximum snowmaking capacity | m³/h | 8 | 8 | 50 | 90 |
| Dimensions (L x W x H) | m | 1.38 x 1.00 x 1.30 | 1.38 x 1.00 x 1.30 | 1.88 x 1.46 x 1.88 | 2.10 x 1.96 x 2.10 |
FIS-10
Single-phase compact indoor snowmaker
Compact mobile unit for small indoor snow scenes and easy transport.
FIS-20
Three-phase compact indoor snowmaker
Three-phase version of the compact unit for stable operation at 380V.
FIS-30
Medium snowmaker
Balanced medium-capacity model with a wider coverage range.
FIS-50
Large snowmaker
High-capacity mobile snowmaker for wide coverage and large venues.
The data above is summarized from the Focusun Mobile Snowmaker catalogue. Water requirement and snowmaking capacity are reference values; final performance depends on ambient temperature, humidity, water condition and project operation.
How to choose a mobile snowmaking machine
FIS-10 or FIS-20
Use the compact models where transport, quick setup and a 15-35 m snowmaking range are more important than maximum output. Select 220V for FIS-10 or 380V for FIS-20.
FIS-30
With up to 50 m³/h maximum snowmaking capacity and a 20-60 m range, FIS-30 suits medium snow attractions and projects that need stronger coverage.
FIS-50
FIS-50 is intended for wide snow areas, ski resorts and snow parks, with a 30-120 m range and up to 90 m³/h maximum snowmaking capacity.
Confirm site conditions
Share the snow area, target snow depth, operating schedule, power supply, water flow, ambient temperature and equipment route so the system can be selected correctly.
Mobile snowmaking for flexible winter experiences
Focusun mobile snowmakers are suitable for ski resort construction, snow park construction and snow sculpture projects. AIM can review the machine position, snow coverage, control requirements and supporting refrigeration or water systems as part of the complete project plan.
Related pages: Snow Machine, Four-Season Snow Machine, Snow Falling Machine.
Need a mobile snowmaker proposal?
Send the snow area, required range, operating temperature, water flow, voltage and project location. AIM Refrigeration will help match the suitable Focusun model.
Technical questions buyers ask before choosing Cannon Type Snow Machine.
These points help overseas buyers compare capacity, condenser type, project data and equipment scope before requesting a quotation from AIM Refrigeration.
What data is needed for an AIM equipment quotation?
Share product type, required capacity, installation country, voltage, ambient temperature, inlet water or product temperature, operating schedule and application details.
Can AIM configure equipment for overseas projects?
Yes. AIM reviews climate, power supply, layout, capacity and workflow before proposing a suitable refrigeration or ice-making configuration.
Does AIM provide technical documents before purchase?
AIM can prepare quotation assumptions, model information and technical documentation according to the confirmed project scope.
